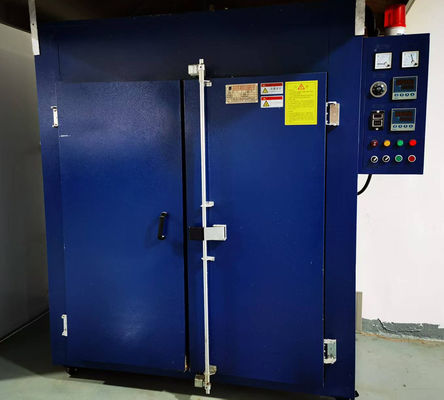

Thermal Circulation Single-temperature Single-control Curing Oven For Varistor Production Equipment
تفاصيل المنتج:
| مكان المنشأ: | Dongguan ， Guangdong ، الصين |
| اسم العلامة التجارية: | UCHI |
| إصدار الشهادات: | SGS.UL |
| رقم الموديل: | واي سي-ككس |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 5000pcs |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حجم كبير |
| وقت التسليم: | 5-7 أيام |
| شروط الدفع: | T / T ، باي بال ، ويسترن يونيون ، المال غرام |
| القدرة على العرض: | 5000،000،000 جهاز كمبيوتر شخصى شهريا |
|
معلومات تفصيلية |
|||
| إبراز: | thermal circulation curing oven,single-temperature varistor oven,varistor production curing equipment,single-temperature varistor oven,varistor production curing equipment |
||
|---|---|---|---|
منتوج وصف
Thermal Circulation Single-temperature Single-control Curing Oven for Varistor Production
This precision curing oven is specifically designed for varistor production, featuring advanced thermal circulation technology and precise temperature control for consistent, high-quality results.
Key Features
- Single-temperature, single-control system for precise curing
- Forced thermal circulation with ±3℃ temperature uniformity
- Digital PID temperature control with power-saving function
- 6-channel real-time temperature monitoring system
- Over-temperature protection and automatic timing functions
- High-capacity design with 45-grill capacity
Technical Specifications
| Dimensions (H*W*D) | 1400 * 1280 * 740 mm |
|---|---|
| Construction | 1.5mm cold-rolled steel exterior with bright blue baked varnish finish |
| Heating System | 12KW, 380V heater with two-stage control |
| Temperature Range | Room temperature to 250°C (adjustable) |
| Control System | Yudian digital display PID controller with thyristor output |
| Air Circulation | 750W Taiwan motor with horizontal airflow |
| Capacity | 45 grills (15 layers * 3 compartments) |
Advanced Control Features
The oven features a comprehensive control system including:
- Yudian digital PID temperature controller with analog output
- Three-phase thyristor output for gradual power adjustment
- 30% power-saving function
- Yuguang over-temperature protection system
- Manual and automatic timing functions
- 6-point temperature monitoring system
Baking Cart Specifications
The integrated baking cart features a durable welded construction:
- Main frame: 30*30mm iron square tubes
- Shelves: 30*30mm angle steel
- 15-layer configuration with 3 compartments
- Fixed position design for stable operation
Operation Sequence
The automated process ensures consistent results:
- Temperature reaches set point → Timer activates
- Timer completes → Heating cuts off (air supply continues)
- Secondary timer completes → Full power cutoff
