Three-tank Disc Coating And Painting Machine For Varistor Production Equipment
تفاصيل المنتج:
| مكان المنشأ: | Dongguan ， Guangdong ، الصين |
| اسم العلامة التجارية: | UCHI |
| إصدار الشهادات: | SGS.UL |
| رقم الموديل: | YC-C |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 5000pcs |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حجم كبير |
| وقت التسليم: | 5-7 أيام |
| شروط الدفع: | T / T ، باي بال ، ويسترن يونيون ، المال غرام |
| القدرة على العرض: | 5000،000،000 جهاز كمبيوتر شخصى شهريا |
|
معلومات تفصيلية |
|||
| إبراز: | three-tank disc coating machine,varistor painting equipment,metal oxide varistor production machine,varistor painting equipment,metal oxide varistor production machine |
||
|---|---|---|---|
منتوج وصف
Three-tank Disc Coating And Painting Machine For Varistor Production Equipment
This specialized three-tank coating machine is designed for efficient varistor production, featuring sequential heating and coating processes with precise temperature control and automated powder application.
Process Flow
- Front buffer rack
- First box heating
- First plate coating with powder
- Second box heating
- Second plate coating with powder
- Third box heating
- Third round disc coating
- Fourth box fluidization with external fan cooling
- Cold air cooling
- Buffering
- Cutting off
Technical Specifications
| Parameter | Value |
|---|---|
| Machine Length | Approximately 6.5 meters |
| Total Weight | Approximately 1,000 kg |
| Model | YC-C (Three-tank coating) |
| Product Pitch | 10mm |
| Encapsulation Thickness | 0.5mm (single-sided) |
| Coating Foot Length | Controlled within 1.5mm (suitable for 20-35mm varistors) |
| Power Requirement | AC380V, three-phase five-wire (approximately 18kW) |
| Gas Source | Over 5kg |
Key Features
- Heating System: Heat sink type heating tubes with temperature range of 150-280°C

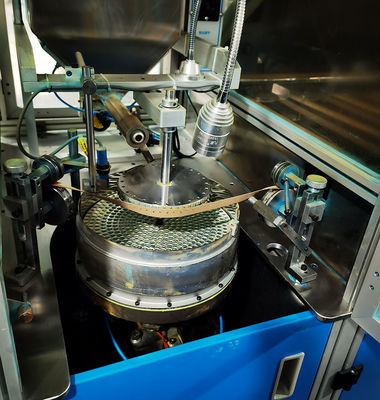

- Coating Method: Rotating disc dip coating with automatic powder feeding
- Powder Control: Photoelectric detection for precise powder level maintenance
- Safety Features: Warning device for box cover operation, high-temperature glass protection
- Construction: Aluminum profile frame with baked blue paint door panels
- Durability: Hard chromium plating on machine panels, anodic hardening for aluminum parts
- Warranty: 1-year comprehensive coverage (excluding human factors and natural disasters)
Equipment Visuals
Schematic Diagram of Three-tank Coating Machine

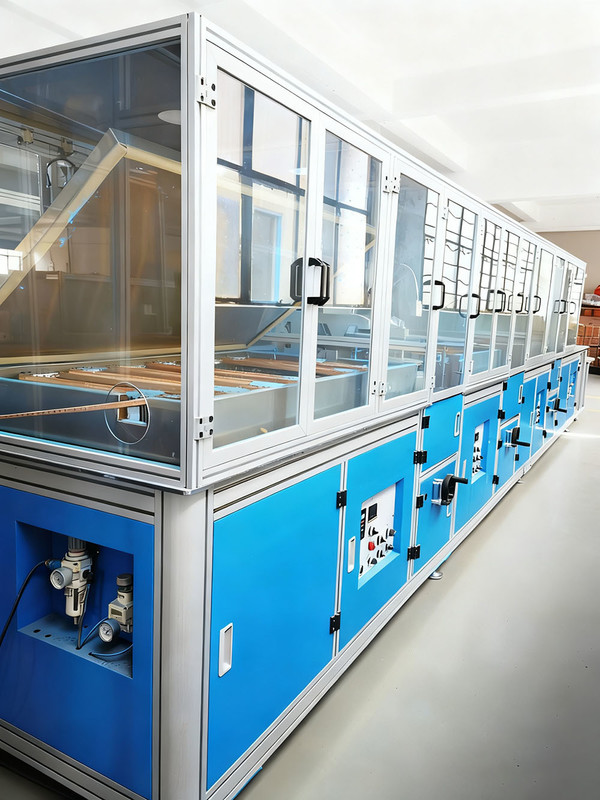

Actual Photo of Varistor Production Equipment
