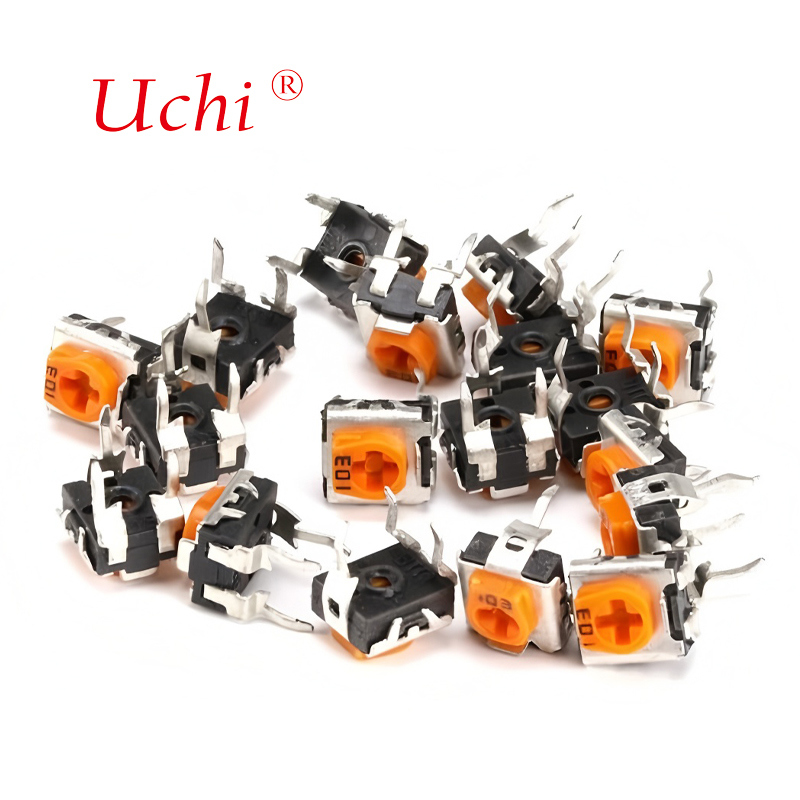

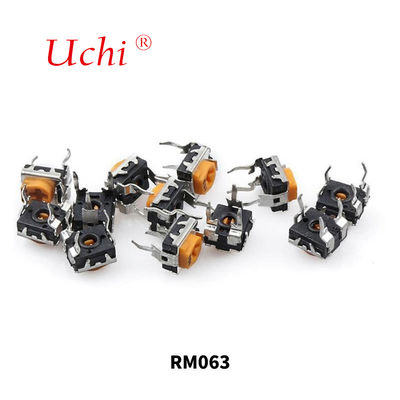

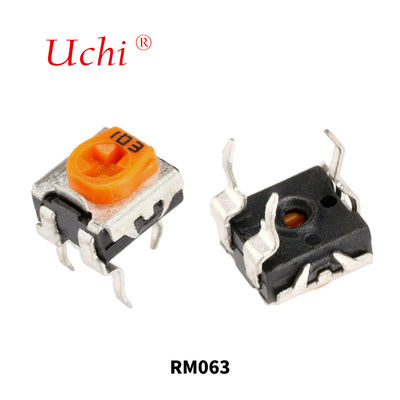

RM063 Yellow Single-turn Carbon Film Trimmer Potentiometer 1m Adjustable Resistor
تفاصيل المنتج:
| مكان المنشأ: | Dongguan ， Guangdong ، الصين |
| اسم العلامة التجارية: | Uchi |
| إصدار الشهادات: | SMC |
| رقم الموديل: | RM063 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 100pcs |
|---|---|
| الأسعار: | قابل للتفاوض |
| شروط الدفع: | / تي تي، بايبال، ويسترن يونيون، موني جرام |
| القدرة على العرض: | 50000000pcs في الشهر |
|
معلومات تفصيلية |
|||
| مقاومة: | 100Ω-1M | تسامح المقاومة: | 20% |
|---|---|---|---|
| القوة المقدرة: | 0.5W | الحجم / البعد: | 7*6.5 مللي متر |
| زاوية الدوران الميكانيكية: | 235 درجة ± 5 درجة | زاوية الدوران الكهربائي: | 215 درجة ± 20 درجة |
| درجة حرارة التشغيل: | -10 درجة مئوية~+70 درجة مئوية | الأعلى. جهد التشغيل: | 50V |
| إبراز: | yellow carbon film potentiometer,single-turn trimmer resistor,1m adjustable potentiometer,single-turn trimmer resistor,1m adjustable potentiometer |
||
منتوج وصف
RM063 Yellow Single-turn Carbon Film Trimmer Potentiometer
The RM063 Yellow Single-turn Carbon Film Trimmer Potentiometer is a 1MΩ adjustable resistor with a blue base and white cap. This vertical plug-in carbon film potentiometer features high-temperature vacuum coating technology that adheres carbon tightly to a ceramic rod surface, forming a durable carbon film for precise resistance adjustment.
Key Features
- High accuracy and good stability
- Compact size for space-constrained applications
- Easy manual adjustment capability
- Durable carbon film construction
- Wide resistance range from 100Ω to 1MΩ
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Nominal Resistance | 100Ω~1MΩ |
| Resistance Tolerance | ±10%, ±20%, ±30% (optional) |
| Residual Resistance | Max. 5% of nominal resistance (under 30Ω) |
| Rated Power | 0.1 Watt |
| Operating Voltage | AC50V Max. |
| Insulation Impedance | ≥100MΩ (at 100V AC) |
Mechanical Characteristics
| Parameter | Specification |
|---|---|
| Variable Rotation Angle | 270º (±20º) |
| Rotational Torque | 20~450 gf.cm |
| Stop-end Strength | <0.5 Kgf.cm |
Environmental Characteristics
| Parameter | Specification |
|---|---|
| Operating Temperature | -10°C to +70°C |
| Humidity Resistance | Max. 20% resistance change after 350 hours at 40°C and 90% RH |
Product Dimensions
Application Areas
This precision adjustable potentiometer is widely used in:
- Audio equipment and electronic devices
- Televisions and home appliances
- Measurement and test equipment
- Telecommunication systems
- Automotive electronics
- Power supply and control systems
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
