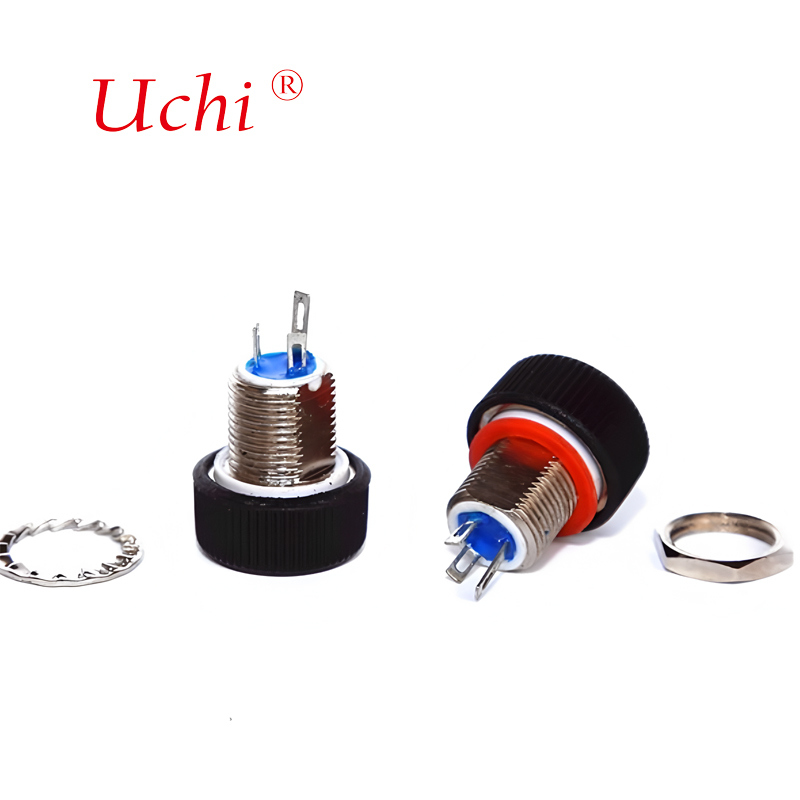

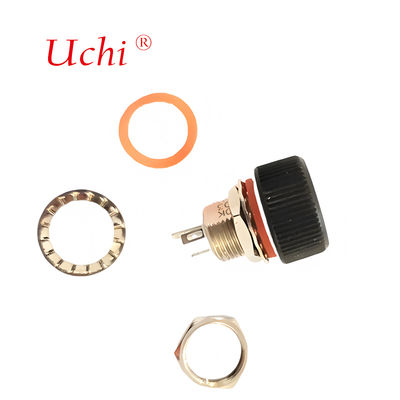

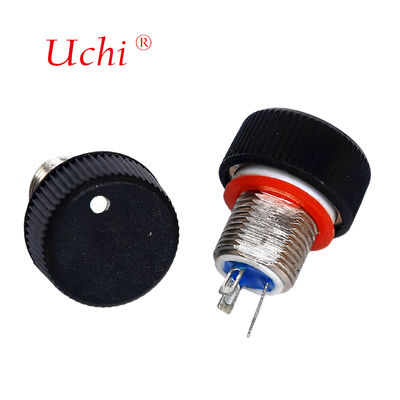

P16NP (WI1609) Metal Ceramic Potentiometer 1w Fine-tuning Knob Potentiometer
تفاصيل المنتج:
| مكان المنشأ: | Dongguan ， Guangdong ، الصين |
| اسم العلامة التجارية: | Uchi |
| إصدار الشهادات: | SMC |
| رقم الموديل: | P16NP (WI1609) |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 100pcs |
|---|---|
| الأسعار: | قابل للتفاوض |
| شروط الدفع: | / تي تي، بايبال، ويسترن يونيون، موني جرام |
| القدرة على العرض: | 50000000pcs في الشهر |
|
معلومات تفصيلية |
|||
| نطاق المقاومة القياسي: | 100 إلى 2 ميغا أوم | تسامح المقاومة: | ± 10 ٪ |
|---|---|---|---|
| الحد الأدنى المطلق للمقاومة: | 1% أو 10 أوم كحد أقصى | تلامس تباين المقاومة: | 3% كحد أقصى |
| مقاومة العزل: | 500 فولت تيار مستمر، 1000 ميجا أوم دقيقة. | القوة العازلة: | 101.3 كيلو باسكال 900 فولت تيار متردد 8.5 كيلو باسكال 500 فولت تيار متردد |
| زاوية الضبط: | 265° نوم | تصنيف الطاقة (200 فولت كحد أقصى): | 1 واط (70 درجة مئوية)، 0 واط (125 درجة مئوية) |
| نطاق درجة الحرارة: | -55 درجة مئوية إلى +125 درجة مئوية | معامل درجة الحرارة: | ±250×10-6/درجة مئوية أو ±100×10-6/درجة مئوية |
| إبراز: | metal ceramic potentiometer 1w,fine-tuning knob potentiometer,precision potentiometer with warranty,fine-tuning knob potentiometer,precision potentiometer with warranty |
||
منتوج وصف
P16NP (WI1609) Metal Ceramic Potentiometer 1w Fine-tuning Knob Potentiometer
The P16 is a revolutionary concept in panel mounted potentiometers. This unique design consists of a knob driving and incorporating a cermet potentiometer. Only the mounting hardware and terminals are situated on the back side of the panel, minimizing required clearance.
Product Features
- P16 - version for professional and industrial applications (cermet) 1 W at 40℃
- PA16 - version for professional audio applications (conductive plastic) 0.5 W at 40℃
- Compact (integrated) design
- High dielectric strength: 2500 VRMs
- Fully sealed and panel sealed construction
- Metallic or plastic knob options available
- Custom knob options upon request
Specification Parameters
Electrical Characteristics
| Standard Resistance Range | 100 to 2 megohms (see standard resistance table) |
|---|---|
| Resistance Tolerance | ±10% std. (tighter tolerance available) |
| Absolute Minimum Resistance | 1% or 10 ohms max. (whichever is greater) |
| Contact Resistance Variation | 3% max. |
| Insulation Resistance | 500 Vdc, 1000 megohms min. |
| Dielectric Strength | 101.3 kPa 900 Vac 8.5 kPa 500 Vac |
| Adjustment Angle | 265° nom. |
Environmental Characteristics
| Power Rating (200 volts max.) | 1 watt (70°C), 0 watt (125°C) |
|---|---|
| Temperature Range | -55°C to +125°C |
| Temperature Coefficient | ±250×10-6/°C or ±100×10-6/°C |
| Vibration | 98 m/s2, 1%ΔTR |
| Shock | 490 m/s2, 1%ΔTR |
| Load Life | 1,000 hours 1 watt @ 70°C (5%ΔTR) |
| Rotational Life | 10000 cycles: (15%ΔTR; 6%, CRV) |
Physical Characteristics
| Mechanical Angle | 305° nom. |
|---|---|
| Torque | (3.5~50) mN*m |
| Stop Strength | 350 mN*m min. |
Product Size
Application Areas
P16NP metal ceramic rotary potentiometer is ideal for: Network communication systems, Night vision goggles, Audio headsets, Communication devices, Remote controls, Hot air blowers, Spotlights for scenes, Air fan controls, Industrial dashboards, Variable frequency drives, and Electric wheelchairs.
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
