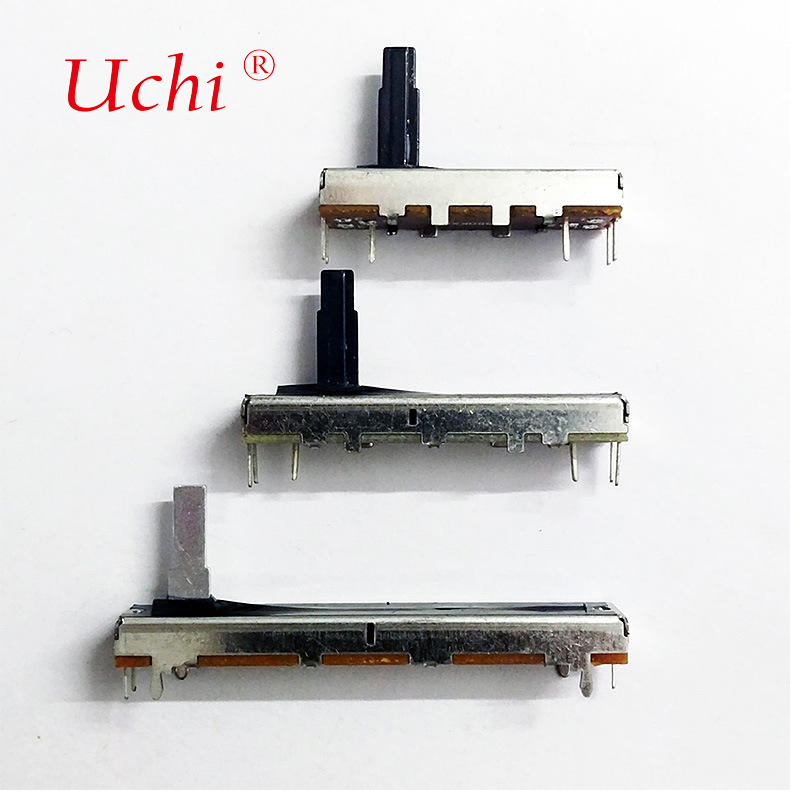

WH3012P 30mm 45mm Stereo Dual Sliding Potentiometer B10K Travel Sliding Potentiometer
تفاصيل المنتج:
| مكان المنشأ: | Dongguan ， Guangdong ، الصين |
| اسم العلامة التجارية: | Uchi |
| إصدار الشهادات: | SMC |
| رقم الموديل: | WH3012P |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 100pcs |
|---|---|
| الأسعار: | قابل للتفاوض |
| شروط الدفع: | / تي تي، بايبال، ويسترن يونيون، موني جرام |
| القدرة على العرض: | 50000000pcs في الشهر |
|
معلومات تفصيلية |
|||
| المقاومة الكلية: | 10 كيلو أوم±20% | مقاومة تفتق: | أ، ب، ج، د، ه، مينيسوتا، أردي، غرب، |
|---|---|---|---|
| الأعلى. عملية الجهد: | الاستدقاق الخطي B: تيار متردد 200 فولت ~ تيار مستمر / فولت | القوة المقدرة: | وحدة فردية: استدقاق خطي ب: 0.2 وات، استدقاق خطي آخر: 0.05 وات وحدة مزدوجة: استدقاق خطي ب: 0.1 وات، ا |
| انزلاق الضوضاء: | أقل من 100 مللي فولت | مقاومة العزل: | أكثر من 100 ميجا أوم عند تيار مستمر 250 فولت |
| تحمل الجهد: | دقيقة واحدة عند تيار متردد 300 فولت | المقاومة المتبقية: | شرط. 1~2: أقل من 10 أوم |
| خطأ جماعي (وحدة مزدوجة): | -40 ديسيبل ~ 0 ديسيبل ± 3 ديسيبل | ||
| إبراز: | 30mm stereo sliding potentiometer B10K,45mm dual sliding potentiometer with warranty,travel sliding potentiometer for precision control,45mm dual sliding potentiometer with warranty,travel sliding potentiometer for precision control |
||
منتوج وصف

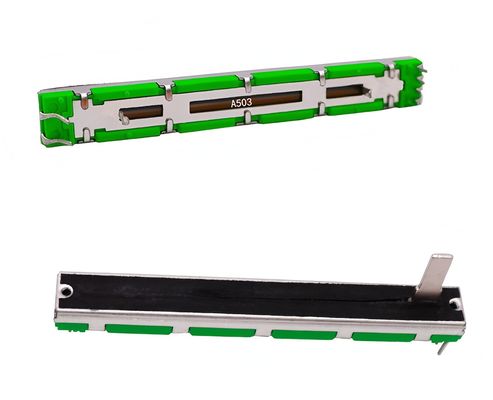

The WH3012P is a high-precision stereo dual sliding potentiometer featuring a 60mm travel range. This sliding resistor uses a resistance wire wound around insulation material with a sliding film contact point to regulate circuit resistance. Ideal for amplifiers, filters, and other electronic devices requiring precise resistance adjustment.
- Total length: 75mm (7.5cm)
- Width: 9mm (0.9cm)
- Thickness: 6.5mm (0.65cm)
- Handle height: 15mm (1.5cm), width: 4mm (0.4cm)
- Stroke length: 60mm (6cm)
- Pin configuration: 4-2 pins
- Resistance: A10K
- Channel: Dual channel
- Precision adjustment with smooth sliding operation
- High accuracy for sensitive electronic circuits
- Simple yet durable construction
- Wide resistance adjustment range
- Versatile applications in amplifiers, filters, and oscillators
| Parameter | Value |
|---|---|
| Total Resistance | 10K Ω±20% |
| Resistance Taper | A, B, C, D, E, MN, RD, W |
| Max. Operation Voltage | Linear Taper B: AC 200V~DC/V Other Tapers: AC 150V~DC/V |
| Rated Power | Single unit: Linear taper B: 0.2W, Other tapers: 0.05W Dual unit: Linear taper B: 0.1W, Other tapers: 0.025W |
| Sliding Noise | Less than 100mV |
| Insulation Resistance | More than 100MΩ at DC 250V |
| Withstand Voltage | 1 minute at AC 300V |
| Residual Resistance | Term. 1~2: Less than 10Ω Term. 2~3: Less than 10Ω |
| Gang Error (Dual Unit) | -40dB ~ 0dB ± 3dB |
| Parameter | Value |
|---|---|
| Total Sliding Travel | 60.0mm ± 0.5mm |
| Operating Force | 10~100gf |
| Sliding Stopper Strength | 5.0Kgf.cm Min. |
| Push-Pull Strength | 3.0Kgf.cm Min. at 5-10 sec |
| Number of Detents (Click) | 1C (Center Detent), 7C, 11C, 21C, 41C |
| Resistance to Soldering Heat | Solder dip: Preheating to 100℃ in 1 min, 260±5℃ for 5 sec Manual Soldering: Less than 300℃ for under 3 sec |
| Sliding Life | 10,000 cycles (Min.) |
This linear slide potentiometer is widely used in audio equipment, mechanical control systems, and instrumentation. Its reliable performance and straightforward design make it a preferred choice for electronic engineers and manufacturers.
