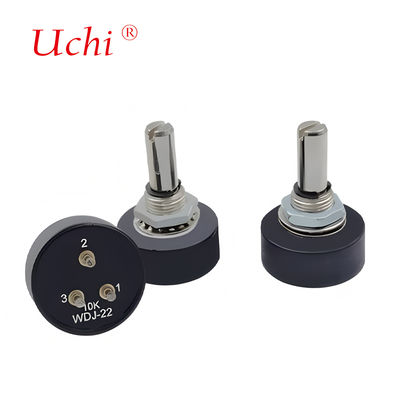

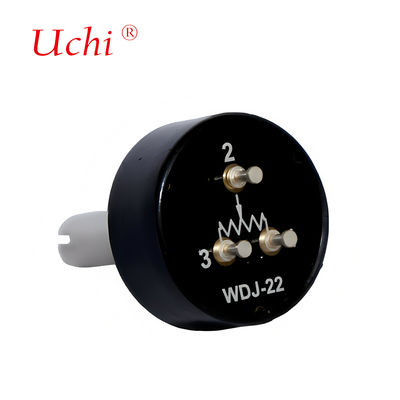

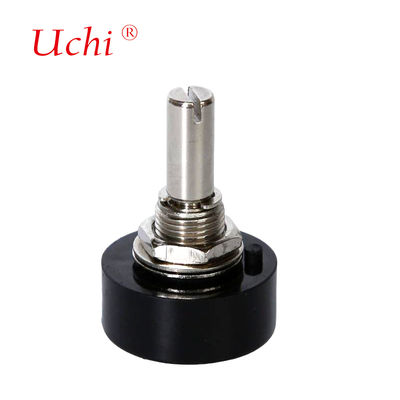

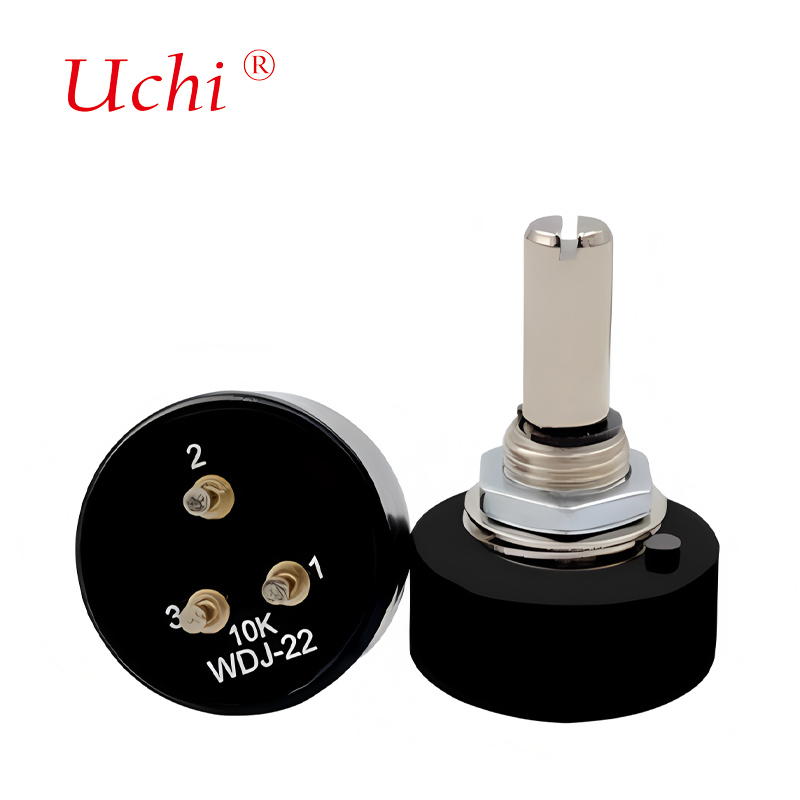

WDJ-22 Conductive Plastic Potentiometer 10k Angular Displacement Sensor
تفاصيل المنتج:
| مكان المنشأ: | Dongguan ， Guangdong ، الصين |
| اسم العلامة التجارية: | Uchi |
| إصدار الشهادات: | SMC |
| رقم الموديل: | ودج-22 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 100pcs |
|---|---|
| الأسعار: | قابل للتفاوض |
| شروط الدفع: | / تي تي، بايبال، ويسترن يونيون، موني جرام |
| القدرة على العرض: | 50000000pcs في الشهر |
|
معلومات تفصيلية |
|||
| مقاومة: | 1 كيلو أوم ~ 10 كيلو أوم | تسامح المقاومة: | ± 10 ٪ |
|---|---|---|---|
| نهاية المقاومة: | <3Ω | مقاومة تفتق: | ب |
| الخطية المستقلة: | ± 0.5 ٪ | تصنيف القوة: | 0.5 واط (70 درجة مئوية)0 واط (120 درجة مئوية) |
| ذروة الضوضاء (CRV): | <2%رن | القوة العازلة: | 1000 فولت 1 دقيقة |
| سفر التعديل: | 90°120°200°240°300°340° | دقة: | لانهائي في الأساس |
| الحد الأقصى لجهد المدخلات: | 200 فولت تيار مستمر | ||
| إبراز: | 10k conductive plastic potentiometer,angular displacement sensor potentiometer,WDJ-22 precision potentiometer,angular displacement sensor potentiometer,WDJ-22 precision potentiometer |
||
منتوج وصف
The WDJ-22 long-life angle sensor conductive plastic potentiometer is designed for accurate angle measurement applications. Featuring conductive plastic construction with precious metal brushes, this sensor delivers low-noise, smooth signal output for precise displacement measurement in applications such as joystick control rods and servo systems.
- Servo installation type for convenient use and installation
- 360° continuous rotation with 340° effective angle (customizable)
- Wide temperature range: -40℃ to +125℃
- Essentially infinite resolution
- High linearity: ±1% to ±0.15%
- Exceptional lifespan: 5 million cycles
- Output smoothness: <0.1%
- Rear terminal customization available
| Electrical Specifications | |
|---|---|
| Resistance Range | 1KΩ-10KΩ |
| Resistance Tolerance | ±10% Standard |
| End Resistance | <3Ω |
| Independent Linearity | ±0.5% |
| Power Rating | 0.5W(70℃)0W(120℃) |
| Peak Noise (C.R.V.) | <2%Rn |
| Dielectric Strength | 1000V 1minute |
| Adjustment Travel | 90°120°200° 240° 300° 340° |
| Insulation Resistance | 10M |
| Resolution | Essentially infinite |
| Maximum Input Voltage | 200VDC |
| Environmental Specifications | |
|---|---|
| Storage Temperature Range | -60℃~+125℃ |
| Operating Temperature Range | -60℃~+125℃ |
| Temperature coefficient | 500ppm/℃ |
| Load Life | 70℃ 1,000h ΔR/R≤±10% |
| Rotational Life | 1,000,000 times, ΔR/R≤±7% |
| IP Range | IP25 |
| Soldering Heat Resistance | (350℃ 3S)ΔR/R≤±2% |
| Temperature Cycle | (-25℃,+85℃ 30min/each,5 cycles) ΔR/R≤±10% |
| Vibration | 10-55Hz, 1.5mm amplitude, 3.directions ΔR/R≤±5% |
| Mechanical Specifications | |
|---|---|
| Mechanical Travel | 220° 320° 360° |
| Shaft Torque | 25~35gf*cm |
| Mounting Nut Torque | 15Kgf*cm |
| Shaft Runout | 0.15mm |
| Shaft End Play | (shaft length 30 mm)0.15mm |
| Shaft Radial Play | 0.15mm |
| Shaft Strength (push) | 125 N (12.75 kgf) min. |
| Shaft Strength (tensile) | 125 N (12.75 kgf) min. |
| Hardware | Washer, Lockwasher, Nut |
The WDJ-22 series angle sensor is ideal for applications requiring precise displacement measurement, including:
- Automotive servo systems
- Engineering machinery
- Aerospace devices and missile systems
- Aircraft radar antennas
- Injection molding machines
- Woodworking machinery
- Printing machines
- Electronic rulers
- Robotics
- Engineering monitoring systems
- Computer-controlled sports equipment
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
We are a factory offering direct pricing with professional technical support.
Samples are available upon request after order placement.
We accept OEM/ODM orders with flexible requirements.
Delivery varies by quantity and model, with urgent requests accommodated when possible.
We provide comprehensive 24-hour support for all products.
