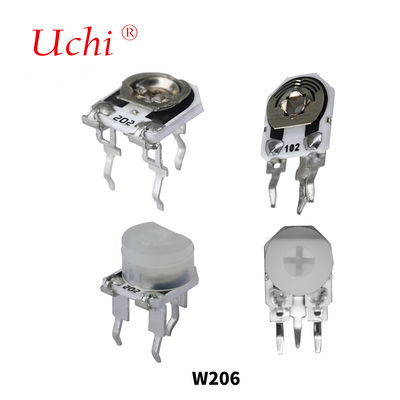

W206 Single-turn Potentiometer Metal Glass Glaze Trimmer Potentiometer 0.25-watt Preset Potentiometer
تفاصيل المنتج:
| مكان المنشأ: | Dongguan ， Guangdong ، الصين |
| اسم العلامة التجارية: | Uchi |
| إصدار الشهادات: | SMC |
| رقم الموديل: | w206 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 100pcs |
|---|---|
| الأسعار: | قابل للتفاوض |
| شروط الدفع: | / تي تي، بايبال، ويسترن يونيون، موني جرام |
| القدرة على العرض: | 50000000pcs في الشهر |
|
معلومات تفصيلية |
|||
| مقاومة: | 100Ω ~ 1MΩ | تسامح المقاومة: | ± 20 ٪ |
|---|---|---|---|
| المقاومة الطرفية: | ±±1%R أو 10Ω | تباين مقاومة الاتصال (CRV): | ± ± 3% ر |
| مقاومة العزل: | ≥ 500 ميجا أوم (100 فولت تيار متردد) | تحمل الجهد: | 250 فولت (قيمة الذروة DC أو AC) |
| السفر الكهربائي الفعال: | 200 درجة | القوة المقدرة: | 0.25 واط (300 فولت كحد أقصى) |
| إبراز: | W206 single-turn potentiometer,metal glass glaze trimmer potentiometer,0.25-watt preset potentiometer,metal glass glaze trimmer potentiometer,0.25-watt preset potentiometer |
||
منتوج وصف

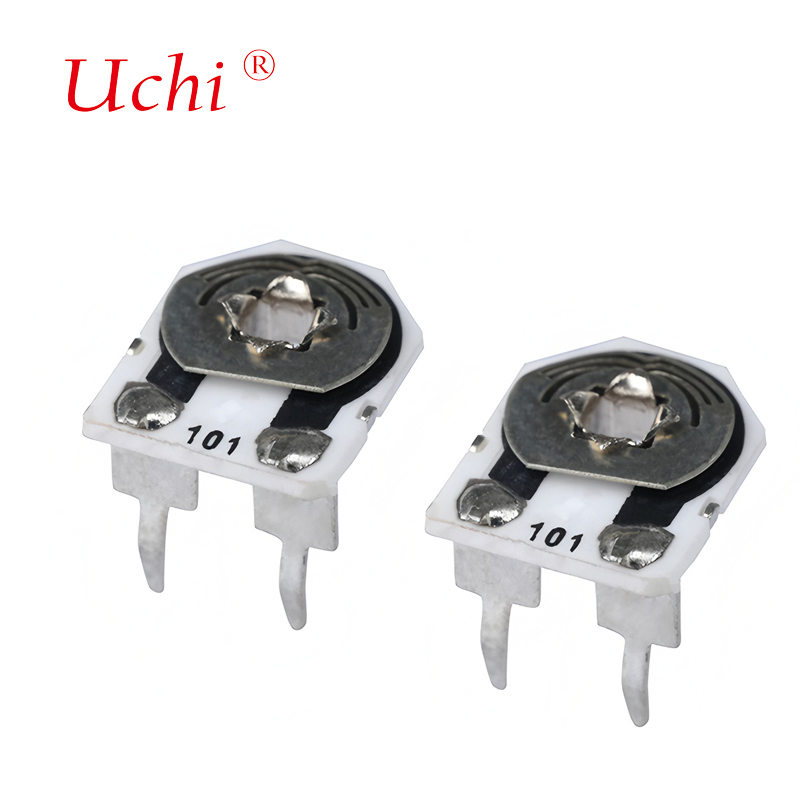

W206 Single-turn Potentiometer Metal Glass Glaze Trimmer Potentiometer 0.25-watt Preset Potentiometer
The W206 single coil metal glass glaze pre adjustable potentiometer is designed for electronic devices including audio amplifiers, mixing consoles, and recorders. With a rated power of 0.25W, this single turn glass glaze fine adjustment potentiometer features metal glass glaze construction offering high temperature resistance, corrosion resistance, and vibration resistance. Circuit parameters can be easily adjusted by rotating the potentiometer knob.
Product Features
- Compact size with spiral structure for installation in tight spaces
- High-precision adjustment capability for fine resistance tuning
- Durable metal construction for long-term stability
- Easy adjustment via knob or screw
- Wide resistance range to accommodate various circuit requirements
- Cost-effective solution for large-scale applications
Note: Avoid excessive adjustment to prevent potentiometer damage or circuit performance impact.
Specification Parameters
| Electrical Characteristics | |
|---|---|
| Range of nominal resistance | 100Ω~1MΩ |
| Resistance tolerance | ±20% |
| Terminal resistance | ≤±1%R or 10Ω |
| Contact resistance variation (CRV) | ≤±3%R |
| Insulation resistance | ≥ 500MΩ (100V AC) |
| Withstand voltage | 250V (DC or AC peak value) |
| Effective electrical travel | ≥200° |
| Environment Characteristics | |
|---|---|
| Rated power | 0.25W (300V max) |
| Temperature range | -55°C~+125°C |
| TCR | ±250×10-6/°C |
| Collision (390m/S2, 4000 times) | ΔR≤±1%R |
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
| Physical Characteristics | |
|---|---|
| Total mechanical travel | ≥240° |
| Starting torque | ≤20mN.m |
| Stopper torque | ≤50mN.m |
| Soldering conditions | 240℃-260℃(5 seconds) |
Product Size
Application Areas
The W206 potentiometer is widely used in communication equipment, audio equipment, power regulation, instrumentation, control circuits, automotive electronics, and lighting equipment.
