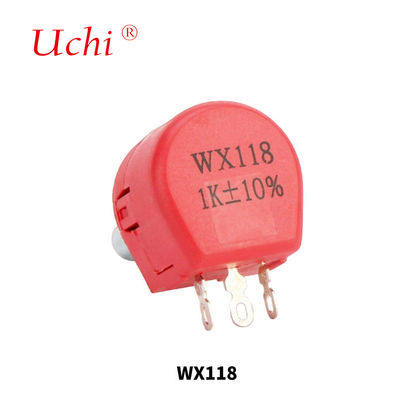

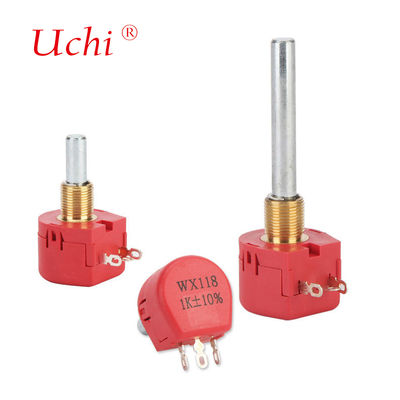

WX118 Wire-wound Rotary Potentiometer 5k Ohm 40mm Axis Single-turn Wire-wound Potentiometer
تفاصيل المنتج:
| مكان المنشأ: | Dongguan ， Guangdong ، الصين |
| اسم العلامة التجارية: | Uchi |
| إصدار الشهادات: | SMC |
| رقم الموديل: | دبليو اكس 118 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 100pcs |
|---|---|
| الأسعار: | قابل للتفاوض |
| شروط الدفع: | / تي تي، بايبال، ويسترن يونيون، موني جرام |
| القدرة على العرض: | 50000000pcs في الشهر |
|
معلومات تفصيلية |
|||
| مقاومة: | 25Ω ~ 25kΩ | تسامح المقاومة: | ± 5٪ ، ± 10٪ |
|---|---|---|---|
| نهاية المقاومة: | 2Ωماكس | نطاق درجة الحرارة: | -55 درجة مئوية ~ + 125 درجة مئوية |
| الزاوية الكهربائية: | 300 درجة ± 5 ° | القوة المقدرة: | 160 فولت تيار متردد، 1 واط: 55 درجة مئوية، 0 واط: 125 درجة مئوية |

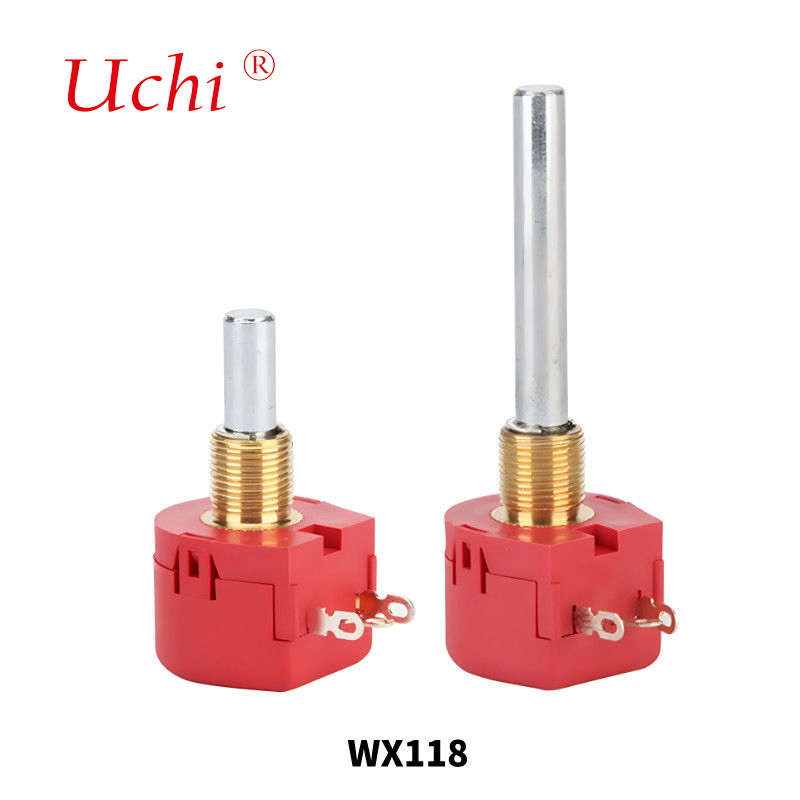

| طول: | مقبض طويل 49 ملم \ مقبض قصير 23 ملم | ||
| إبراز: | 5k Ohm wire-wound potentiometer,40mm axis rotary potentiometer,single-turn precision potentiometer,40mm axis rotary potentiometer,single-turn precision potentiometer |
||
منتوج وصف
WX118 Wire-wound Rotary Potentiometer 5k Ohm 40mm Axis Single-turn Wire-wound Potentiometer
The WX118 single coil wire wound potentiometer is a precision variable resistance component for electronic devices, controlling current or voltage output through adjustable resistance. Its rotating axis modifies resistance by changing the number of wire turns in its single-coil winding configuration, making it ideal for precise small-range circuit adjustments.
This potentiometer offers high precision, durability, flexible regulation, cost-effectiveness, and broad applicability across various electronic applications.
Specification Parameters
ELECTRICAL CHARACTERISTICS
| RANGE OF NOMINAL RESISTANCE | 25Ω~25KΩ |
| RESISTANCE TOLERANCE | ±5% ±10% |
| INDEPENDENT LINEARITY | ±0.5% |
| TERMINAL RESISTANCE | ≤0.2% OR 2Ω |
| ROTATION NOISE | ≤3%R |
| WITHSTAND VOLTAGE | 1000AC |
| EFFECTIVE ELECTRICAL TRAVEL | 265°±5° |
ENVIRONMENTAL CHARACTERISTICS
| RATED POWER | 160VAC, 1W:55℃, 0W:125℃ |
| TEMPERATURE RANGE | -22℃~ +125℃ |
| TEMPERATURE COEFFICIENT | ±100ppm/℃ maximum / unit |
| COLLISION | 390m/S², 4000 cycles ΔR≤±1%R |
| VIBRATION | 10~500HZ, 0.75mm, 6h ΔR≤±1%R Electrical interruption≤100us |
| 55℃ Electrical durability | 1W, 1000h, ΔR≤±3%R |
| MECHANICAL ENDURANCE | 5,000 cycles ΔR≤±3%R |
| LIFE | 5,000 cycles |
PHYSICAL CHARACTERISTICS
| TOTAL MECHANICAL TRAVEL | 285°±5° |
| STARTING TORQUE | 35--100mN.m |
| STOP STRENGTH | 400mN.m |
Product Size
Application Areas
- Audio devices: Volume and tone control circuits
- Electronic instruments: Calibration for oscilloscopes and signal generators
- Communication equipment: Frequency and volume adjustment in radios and walkie-talkies
- Control systems: Precision resistance adjustment for sensors and actuators
- Automotive electronics: Audio and lighting system controls
