WX14-12 3w Single-turn Wire-wound Rv12mm Rotary Potentiometer
تفاصيل المنتج:
| مكان المنشأ: | Dongguan ， Guangdong ، الصين |
| اسم العلامة التجارية: | Uchi |
| إصدار الشهادات: | SMC |
| رقم الموديل: | WX14-12 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 100pcs |
|---|---|
| الأسعار: | قابل للتفاوض |
| شروط الدفع: | / تي تي، بايبال، ويسترن يونيون، موني جرام |
| القدرة على العرض: | 50000000pcs في الشهر |
|
معلومات تفصيلية |
|||
| القوة المقدرة: | 3W | مقاومة: | 1Ω~22KΩ |
|---|---|---|---|
| تسامح المقاومة: | ± 5٪ ، ± 10٪ | الحجم / البعد: | 24*35 مللي متر |
| قطر رمح: | 6 ملم | عدد الدورات: | 1 دورة |
| دورات الحياة التناوبية (بدون تحميل).: | 10000 | زاوية الدوران: | 300 درجة |
| إبراز: | 3W wire-wound potentiometer,RV12mm rotary potentiometer,single-turn precision potentiometer,RV12mm rotary potentiometer,single-turn precision potentiometer |
||
منتوج وصف

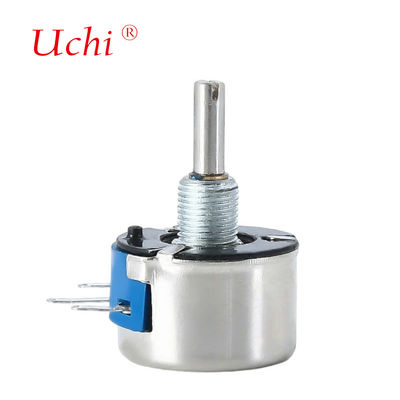

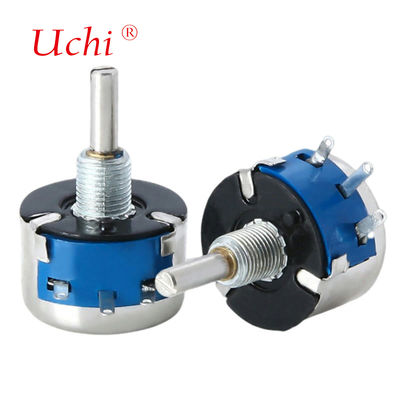

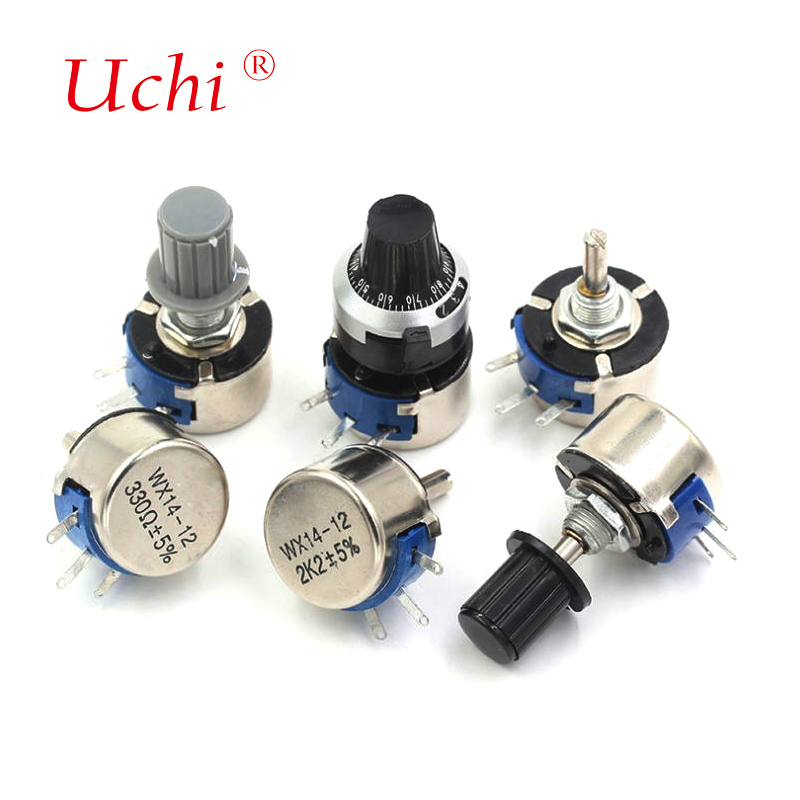

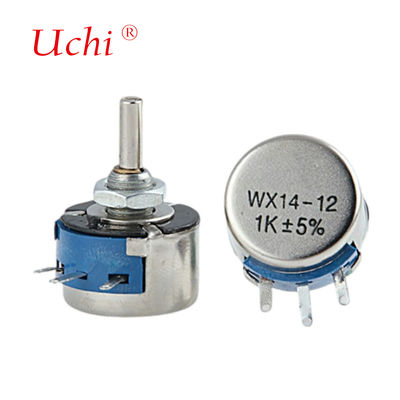

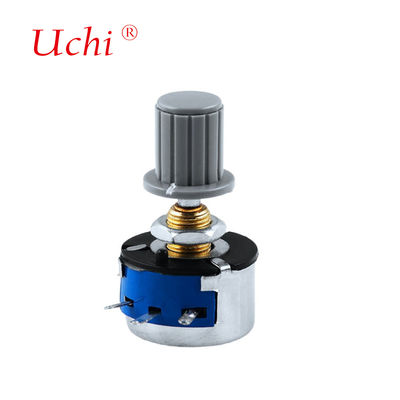

WX14-12 3W Single-turn Wire-wound RV12mm Rotary Potentiometer
The WX14-12 single-circle wire winding power unit features a power rating of 3W, axis diameter of 4mm, outer circular diameter of 24mm, and open hole of 8.3mm. With an accuracy of ±5% and knob angle of 300°, this potentiometer offers multiple resistance options from 27Ω to 20K.
Specification Parameters
| Product Name | Single turn wirewound potentiometer |
|---|---|
| Model | WX14-12 |
| Resistance | ±5%,±10% |
| Package Diameter | 24mm |
| Shape | Round |
| Number of Turns | 1 turn |
| Sealable | IP40 |
| Shaft | Nickel plated rail |
| Element | Wirewound |
| Terminal | Solder lug |
| Taper-Linear | X |
| Linearity | ±5%~±10% |
| Resistance-Minimum | 1Ω |
| Resistance-Maximum | 22k |
| Tolerance Resistance | ±5%/±10% |
| Power-Rating | 3W |
| Angle of Rotation | 300° |
| Rotational Life (No Load) Cycles | 10000 |
| Shaft Diameter | 4mm |
| Shaft Length | 20mm |
| Panel Diameter | 23mm |
Product Features
- Silver contact copper parts enhance frequency response and conductor performance
- Durable thick iron shell material provides high mechanical strength and weather resistance
- Multiple resistance options available with custom values upon request
Product Size
Application Area
The WX14-12 single coil wire wound potentiometer is primarily used for voltage or current adjustment. This wire-wound potentiometer features resistance wire wound on an insulated frame, with adjustable resistance via shaft rotation. Commonly used in audio equipment, power supplies, and other electronic devices for volume control and signal adjustment.
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
-
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support. -
Could you provide samples?
Samples are available upon request after order placement. -
Can your product be customized?
We accept OEM/ODM orders with flexible requirements. -
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible. -
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
