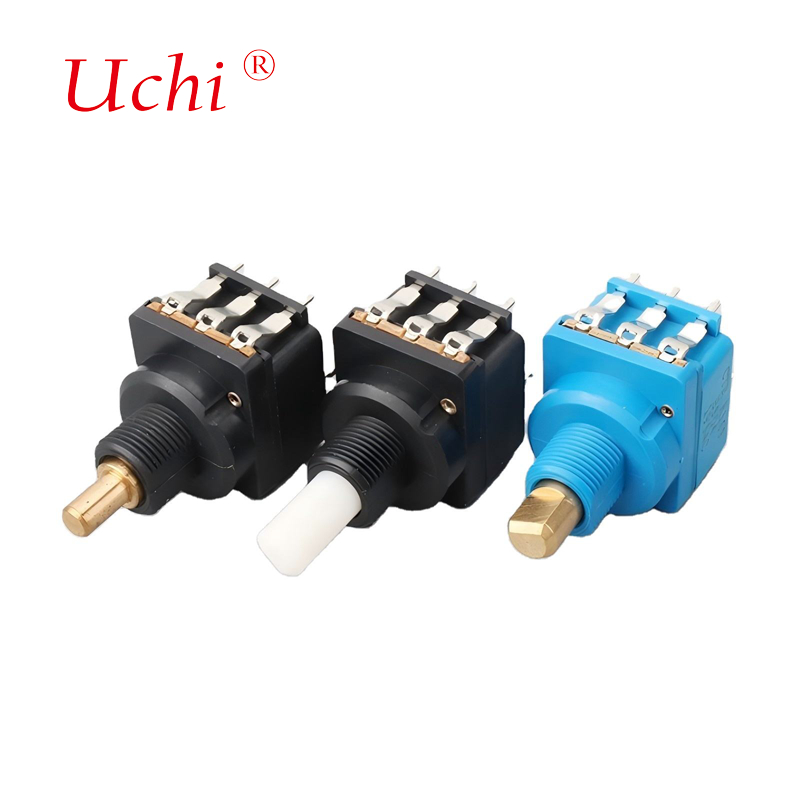

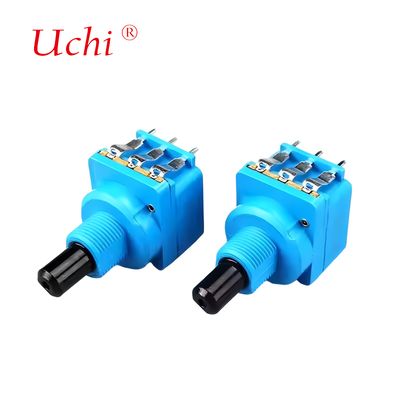

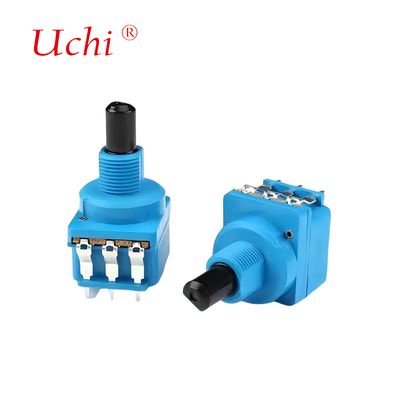

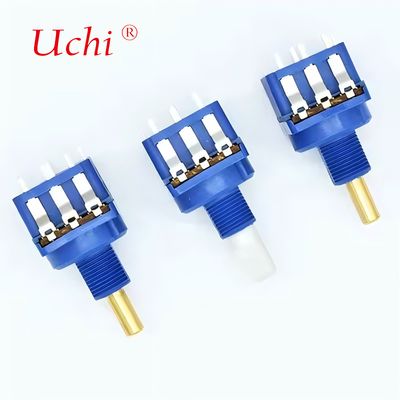

WH116AK Soild Copper Shaft Rotary Dimming Potentiometer With 10A Push-button Switch
تفاصيل المنتج:
| مكان المنشأ: | Dongguan ， Guangdong ، الصين |
| اسم العلامة التجارية: | Uchi |
| إصدار الشهادات: | SMC |
| رقم الموديل: | WH116AK |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 100pcs |
|---|---|
| الأسعار: | قابل للتفاوض |
| شروط الدفع: | / تي تي، بايبال، ويسترن يونيون، موني جرام |
| القدرة على العرض: | 50000000pcs في الشهر |
|
معلومات تفصيلية |
|||
| مقاومة: | 1K-2M | تسامح المقاومة: | ± 20 ٪ |
|---|---|---|---|
| وزن إجمالي واحد: | 0.250 كجم | حجم حزمة واحد: | 10x10x5 سم |
| تبديل الطاقة المقدرة: | التيار المتناوب 250 فولت 10 أمبير | ماكس.جهد التشغيل: | تيار متردد 250 فولت |
| إبراز: | solid copper shaft potentiometer,rotary dimming potentiometer with switch,10A push-button switch potentiometer,rotary dimming potentiometer with switch,10A push-button switch potentiometer |
||
منتوج وصف
WH116AK Solid Copper Shaft Rotary Dimming Potentiometer With 10A Push-button Switch
The WH116AK is a high-performance carbon film rotary potentiometer with press switch function, designed for dimming, speed regulation, and volume adjustment applications. Featuring a flame-retardant fiberglass reinforced engineering plastic structure, it offers exceptional stability and reliability with special silver alloy contacts for superior performance.
Key Specifications
| Electrical Characteristics | ||
|---|---|---|
| 1.1 | Total Resistance | 1KΩ to 2MΩ |
| 1.2 | Total Resistance Tolerance | ±10%,±20% |
| 1.3 | Resistance Temperature Coefficient | 20℃~75℃: ±5%, -25℃~20℃: ±4.5% |
| 1.4 | Resistance Taper | A,B |
| 1.6 | Rated Power | 0.2W |
| 1.7 | Max Operating Voltage | AC 250V |
| 1.12 | Switch Rated Power | AC 250V 10A |
| Mechanical Characteristics | ||
| 2.1 | Rotation Angle | 300°±5° |
| 2.2 | Rotation Torque | 20~200gf.cm |
| 2.7 | Switch Action | 80~250gf.cm |
| Durability | ||
| 3.1 | Operating Temperature | -10℃~70℃ |
| 3.2 | Rotation Life | 15,000 Cycles |
Product Features
- VDE, NEMKO CB certified for quality assurance
- SPDT switch contact form
- Compliant with 1058-1/EN61058-1 (VDE0630) standards
- Flame-retardant fiberglass reinforced structure
- Special silver alloy contacts for reliable performance
- Welded lead terminals for secure connections
- Wide application in appliances, instruments, and medical devices
Product Dimensions
Product Catalog
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
- Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support. - Could you provide samples?
Samples are available upon request after order placement. - Can your product be customized?
We accept OEM/ODM orders with flexible requirements. - What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible. - Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
