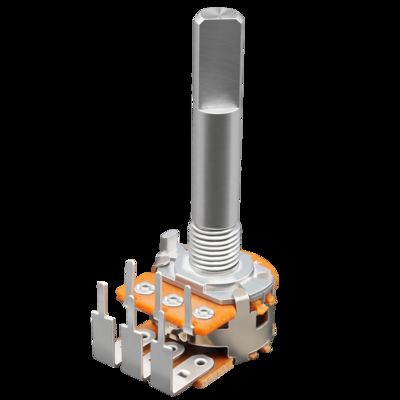

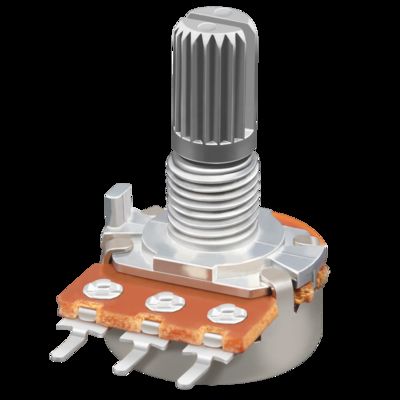

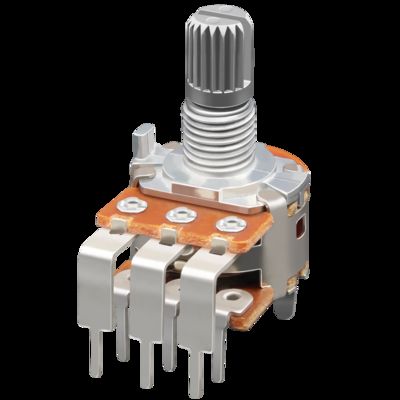

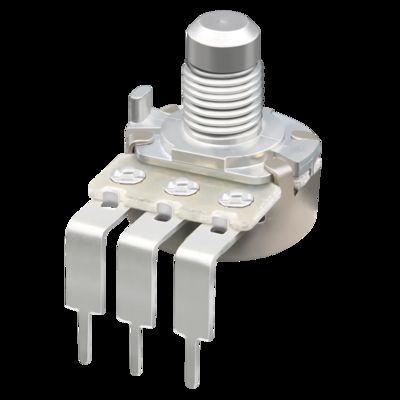

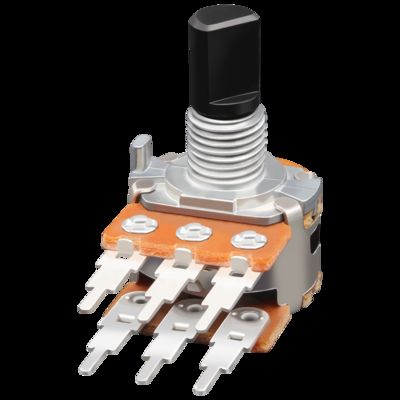

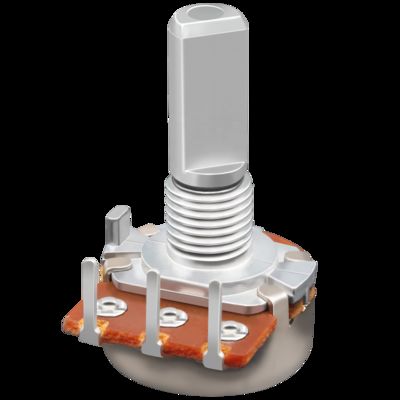

RD16 Metal Shaft Rotary Potentiometer RV16 Potentiometer CTR Precision Potentiometers
تفاصيل المنتج:
| مكان المنشأ: | Dongguan ， Guangdong ، الصين |
| اسم العلامة التجارية: | Uchi |
| إصدار الشهادات: | SMC |
| رقم الموديل: | آر دي16 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 100pcs |
|---|---|
| الأسعار: | قابل للتفاوض |
| شروط الدفع: | / تي تي، بايبال، ويسترن يونيون، موني جرام |
| القدرة على العرض: | 50000000pcs في الشهر |
|
معلومات تفصيلية |
|||
| نطاق المقاومة الكلي: | B50Ω~B2MΩ أ، ج: 1KΩ~2MΩ | تسامح المقاومة: | ± 10 ٪ |
|---|---|---|---|
| نهاية المقاومة: | ≤3Ω | مقاومة تفتق: | ب(خطي) أ(لوغاريتم) ج(سجل عكسي) |
| مقاومة العزل: | ≥100mΩ | القوة العازلة: | تيار متردد 1000 فولت 1 دقيقة |
| الزاوية الكهربائية: | 280 ° ± 10 ° | قوة: | 0.05 واط |
| درجة حرارة العمل: | -10 درجة مئوية ~ 70 درجة مئوية | زاوية الدوران الإجمالية: | 300 درجة ± 10 درجة |
| إبراز: | RV16 metal shaft potentiometer,precision rotary potentiometer,CTR potentiometer with warranty,precision rotary potentiometer,CTR potentiometer with warranty |
||
منتوج وصف
High-precision RD16 series potentiometers with switch functionality, designed for professional audio equipment, home appliances, lighting control systems, and various electronic devices.
| Dimensions | 17mm |
|---|---|
| Total rotational angle | 300°±10° |
| Rated power | 0.05W |
| Maximum operating voltage | AC 50V/ DC 20V |
| Operating temperature | -10℃ ~70℃ |
| Rotational life | 10,000 cycles (Min) |
- Smooth rotation with reliable performance

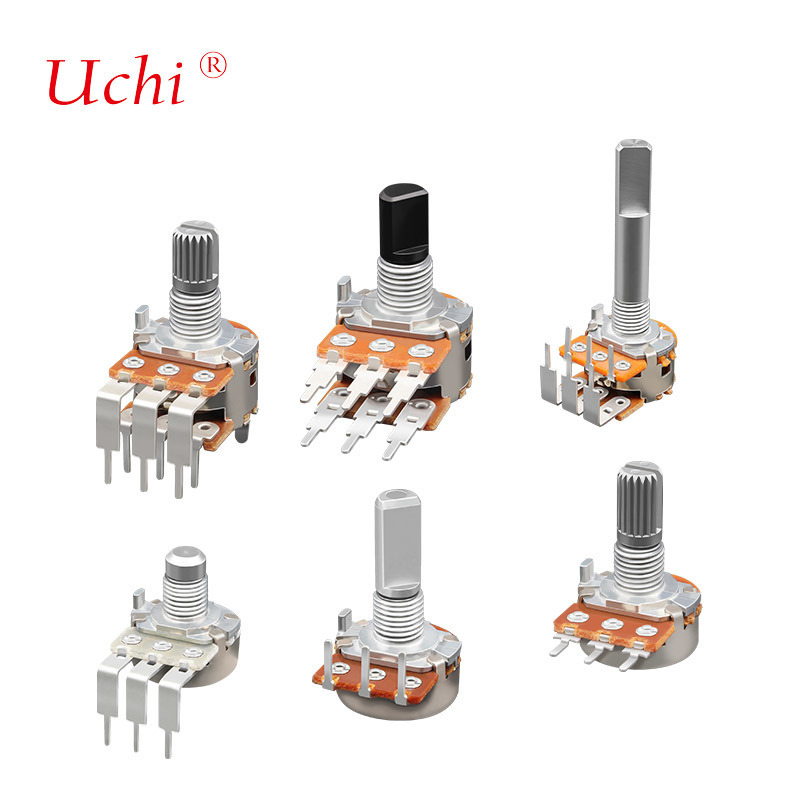

- Multiple variants available
- Functions include volume adjustment, voltage regulation, temperature control, and speed regulation
- Integrated switch for power on/off control
- Rotational Torque: 20~200gf.cm
- Total Rotational Angle: 300°±10°
- Shaft Stop Strength: ≥3.0Kgf.cm
- Shaft Wobble (mm p-p): Within(0.7xL/20)mm p-p
- Total Resistance Range: 1KΩ＜R＜1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
- Resistance Taper: A/B/C
- Rated Power: 0.05W
- Maximum Operating Voltage: AC 50V/ DC 20V
- Residual Resistance: R1,2≤10Ω; R2,3≤20Ω
- Insulation Resistance: 100MΩ 1 Minute at DC 100V
- Dielectric Voltage: 1 Minute at AC 250V
- Rotational life: 10,000 cycles (Min)
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
Uchi Electronics specializes in manufacturing high-quality electronic components including high-power resistors, wire-wound potentiometers, trimmer potentiometers, and precision potentiometric devices. With advanced production facilities and professional R&D teams, our products meet international quality standards and are exported to over 30 countries worldwide.
We offer multiple shipping methods including express mail service, DHL Express, UPS, and FedEx to ensure safe and efficient delivery of your products.
We are a factory offering direct factory pricing without middlemen. We provide professional technical support and accept customized OEM & ODM orders.
Samples are available upon request. Contact us to arrange sample delivery after placing your order.
We accept OEM and ODM orders with varying customization requirements. Contact our customer service for specific details regarding minimum order quantities and pricing.
Delivery times vary based on product quantity, production process, and model. We have multiple factories to handle simultaneous production and can accommodate urgent requests.
All products come with comprehensive after-sales support. Our team provides 24-hour assistance for any technical or quality issues.
