DC5V 1504 Hydraulic DC Fan Specification Liquid Cooling Plate
تفاصيل المنتج:
| مكان المنشأ: | دونغقوان، قوانغدونغ، الصين |
| اسم العلامة التجارية: | UCHI |
| إصدار الشهادات: | UL.VDE,SGS,REACH,CQC,CSA.ISO.ROHS,CUL |
| رقم الموديل: | م 6 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1000 قطعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حجم كبير |
| وقت التسليم: | 5-7 أيام |
| شروط الدفع: | T / T ، باي بال ، ويسترن يونيون ، المال غرام |
| القدرة على العرض: | 5000،000،000 جهاز كمبيوتر شخصى شهريا |
|
معلومات تفصيلية |
|||
| إبراز: | DC5V 1504 hydraulic cooling fan,liquid cooling plate with DC fan,hydraulic DC fan for cooling plate |
||
|---|---|---|---|
منتوج وصف

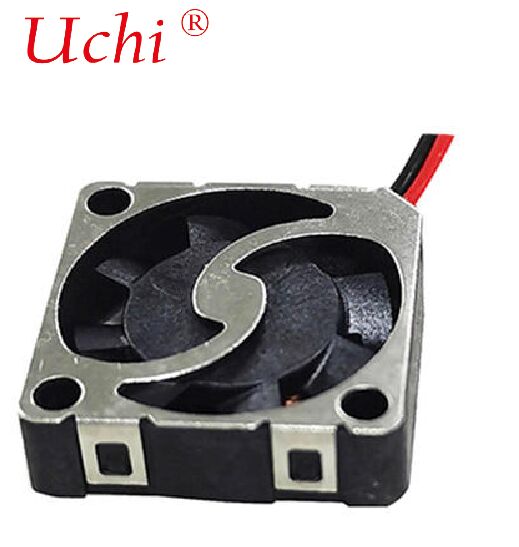

DC5V 1504 Hydraulic DC Fan Specification
1. Basic Information
Model: 1504 Micro DC Cooling Fan
Dimension: 15×15×4mm
Rated Voltage: DC 5V
Bearing Type: Hydraulic Bearing
2. Electrical & Performance Parameters
Rated Voltage: DC 5V
Operating Voltage Range: DC 2.0~6.0V
Rated Current: 0.03A
Rated Speed: 16000~20000RPM
Air Flow: 0.12CFM
Air Pressure: 2.0mmH₂O
Noise Level: 32dB(A)
3. Material & Physical Characteristics
Frame Material: PBT/LCP Flame Retardant Plastic, UL94V-0
Fan Blade Material: PBT Flame Retardant Plastic
Weight: Approx 4~5g
Service Life: About 30000 hours at 25℃ ambient temperature
4. Product Advantages
- Hydraulic bearing, ultra-quiet operation and low vibration
- Ultra-thin 1504 size, perfect for narrow and compact space
- Low power consumption and low current, stable performance
- Flame retardant material, safe and reliable
5. Application
Drone flight control & image transmission module
Dash cam, vehicle small electronic equipment
VR & portable digital devices, mini projector
Beauty instrument, nebulizer, micro industrial control mainboard
6. Certification & Wiring
Certification: CE, RoHS compliant
Wiring: Standard 2Pin red and black lead
![]()
![]()
![]()
![]()
![]()
![]()
