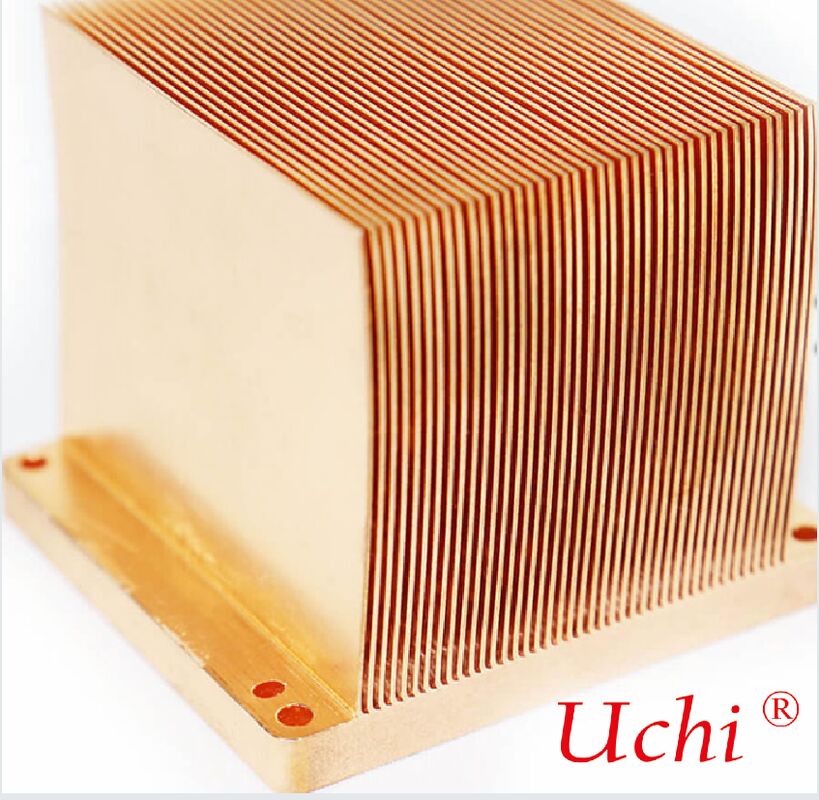

Product parameters of Copper skived process fins heat sink fins for high power thermal solutions

Material: copper

Size:54*50*46mm

Weight: 0.464kg

Technology: Skiving fin

Feature: Higher cooling power and better conductivity

Surface treatment: Passivation

Heat cooling power: 168W

Product advantage of Copper skived process fins heat sink fins for high power thermal solutions

Skiving fin is the process of relieving Al teeth. The profile is processed into a specific model, such as radiator, etc. with the skiving fin machine tool, the finished product is the skiving fin heat sink.

The skiving fin heat sink is a kind of gap structure with the same sequence formed by cutting the material out of a certain angle by mechanical action of the strip profile (aluminum and copper). It is used to solve the heat dissipation of high-power devices under the condition of air cooling and heat dissipation, and its heat dissipation efficiency can be increased by 8-15% compared with the other heat sink.

With the large-scale application,our skiving fin radiator technology are more mature, the level of automation is gradually improved, our cost and reliability advantages are remarkable. It is used in UPS, base station, charging pile, frequency converter, controller, wind power converter, SVG, LED lamp.
