A Liquid Water Cooler Radiator System With A Silver Heat-absorbing Head Liquid-cooled Heat Sink
تفاصيل المنتج:
| مكان المنشأ: | Dongguan ， Guangdong ، الصين |
| اسم العلامة التجارية: | Uchi |
| إصدار الشهادات: | SMC |
| رقم الموديل: | بالوعة الحرارة المبردة بالسائل12 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 100pcs |
|---|---|
| الأسعار: | قابل للتفاوض |
| شروط الدفع: | / تي تي، بايبال، ويسترن يونيون، موني جرام |
| القدرة على العرض: | 50000000pcs في الشهر |
|
معلومات تفصيلية |
|||
| مقاس: | 40*240*12 ملم | الوزن (كجم): | 0.5 |
|---|---|---|---|
| تسطيح السطح: | 0.1 مم | سعة التبريد: | 200 واط |
| ضغط العمل: | ما لا يقل عن 1 بار | الانتهاء من السطح: | الانتهاء من مطحنة أو أنودة |
| مادة: | سبائك الألومنيوم | خشونة السطح: | 3.2 أم |
| طريقة التبريد: | التبريد السائل | ||
| إبراز: | liquid water cooler radiator system,silver heat-absorbing liquid-cooled heat sink,liquid cooling plate with warranty,silver heat-absorbing liquid-cooled heat sink,liquid cooling plate with warranty |
||
منتوج وصف

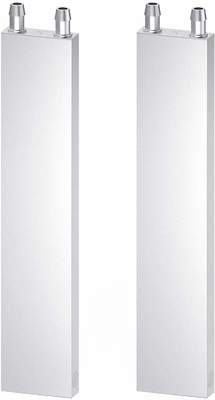

Liquid Water Cooler Radiator System With Silver Heat-absorbing Head
This high-performance liquid-cooled heat sink features a lightweight, anti-rust aluminum alloy construction with an M-shaped flow channel design for optimal thermal uniformity. Compatible with various coolants, it's ideal for CPU, GPU, and industrial cooling applications.
Product Specifications
| No. | Item Description | Content |
|---|---|---|
| 1 | Material | Aluminum alloy (3003, 6061, 6063) |

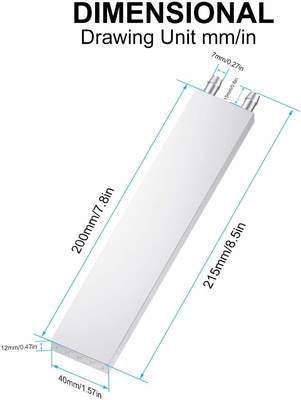

| 2 | Dimension (LxWxH) | 240x40x12 mm |
| 3 | Cooling capacity | 200 W |
| 4 | Surface roughness | Ra 3.2 μm |
| 5 | Flatness | 0.1 mm |
| 6 | Working Pressure | At least 1 bar |
| 7 | Joining Method | Brazing, welding or other suitable techniques |
| 8 | Manufacturing technique | CNC machining, extrusion or other suitable processes |
| 9 | Recommended Coolants | Deionized Water, Inhibited Glycol and Water, Dielectric fluid |
| 10 | Surface finish | Mill finish, anodization or chemical coating |
| 11 | Place of Origin | China |
| 12 | Packing | Carton box or plywood case with films protection |
Key Features
- Lightweight aluminum alloy construction with anti-rust properties
- Compatible with 7-8 mm inner diameter water pipes

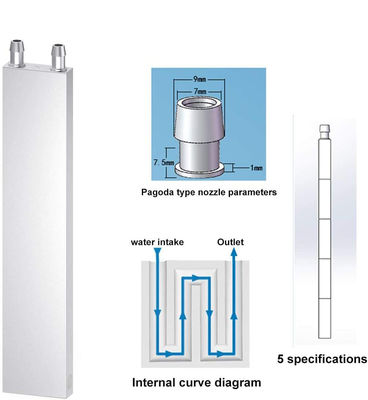

- Precision M-shaped flow channel design for optimal thermal performance
- Versatile applications including CPU, GPU, semiconductor cooling, and industrial systems
- High thermal uniformity and compact design

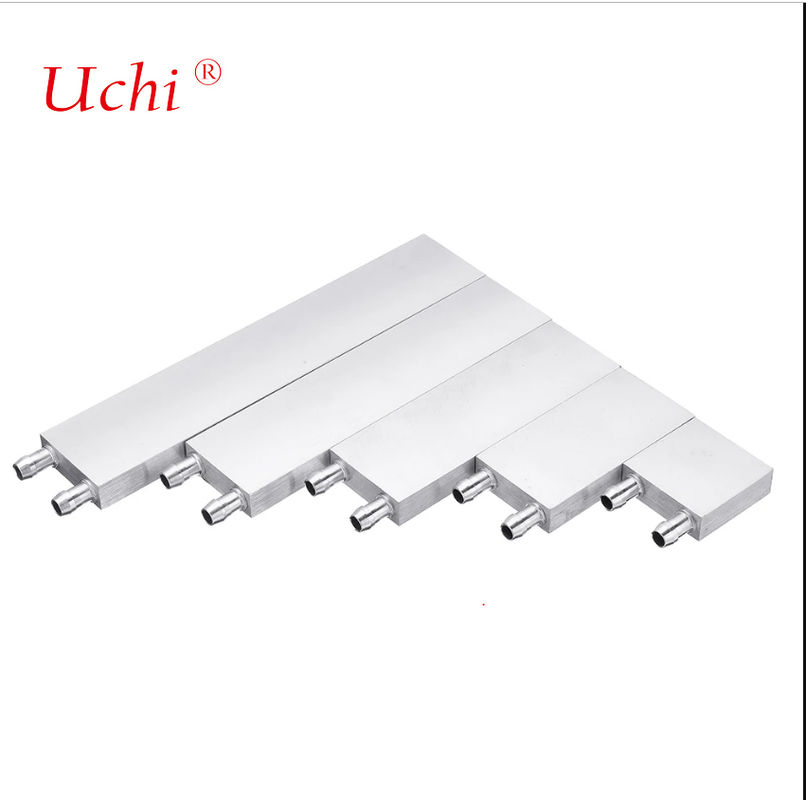

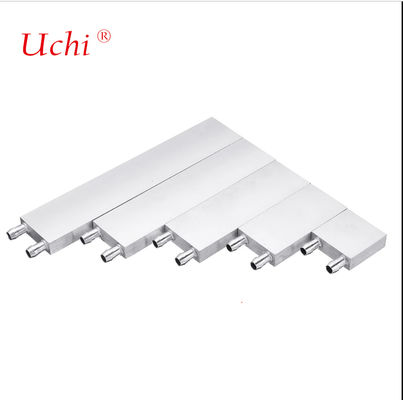

Available Sizes
- 40×40×12 mm
- 40×80×12 mm
- 40×120×12 mm
- 40×160×12 mm
- 40×180×12 mm
- 40×200×12 mm
- 40×240×12 mm
Custom sizes available upon request.
Manufacturing Capabilities
Production Facilities
25 CNC machines, 10 stamping machines, 2 friction welding machines, 2 large thermal blowers, 4 wire cutting machines, 2 spark machines, 4 milling machines and 3 grinding machines.
Quality Assurance
1 Coordinate Measuring Machine, 1 projector instrument, 2 water high pressure testing machines, 4 thermal resistance testing machines, and 2 liquid leakage testing machines.
Our Certifications
Customer Service
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
