Automotive Intake Manifold Temperature and Pressure Integrated Sensor Resettable
تفاصيل المنتج:
| مكان المنشأ: | دونغقوان، قوانغدونغ، الصين |
| اسم العلامة التجارية: | UCHI |
| إصدار الشهادات: | UL.VDE,SGS,REACH,CQC,CSA.ISO.ROHS,CUL |
| رقم الموديل: | تماب |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1000 قطعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حجم كبير |
| وقت التسليم: | 5-7 أيام |
| شروط الدفع: | T / T ، باي بال ، ويسترن يونيون ، المال غرام |
| القدرة على العرض: | 5000،000،000 جهاز كمبيوتر شخصى شهريا |
|
معلومات تفصيلية |
|||
| يكتب: | جهاز معامل درجة الحرارة الإيجابية البوليمرية (PPTC). | مواد الوسادة الطرفية: | النيكل والنحاس المطلي بالقصدير |
|---|---|---|---|
| خصائص الانصهار: | نوع سريع | نوع الصمامات: | البوليمري |
| الحد الأقصى للجهد: | 16 (ت) | تاريخ الإنتاج: | اخر تاريخ |
| ص كحد أقصى: | 0.012Ω | الحد الأقصى لتصنيف الطاقة: | 0.1 واط - 5 واط |
| تبديد الطاقة: | 0.6 واط | الجهد القصوى: | 10 فولت |
| نطاق درجة الحرارة: | 73 ℃ ~ 240C | تيار الصهر الاسمي: | 0.22A |
| إبراز: | Automotive intake manifold sensor,Resettable pressure temperature sensor,PPTC resettable fuse sensor,Resettable pressure temperature sensor,PPTC resettable fuse sensor |
||
منتوج وصف

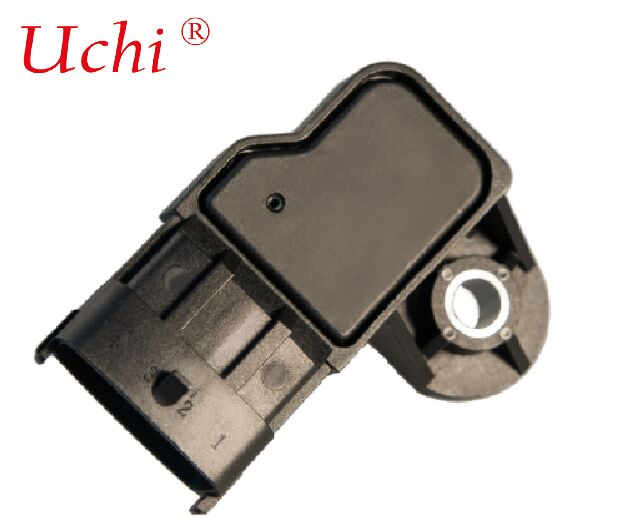

Automotive Intake Manifold Temperature and Pressure Integrated Sensor (TMAP)
Product Introduction
This intake manifold temperature and pressure integrated sensor (TMAP) real‑time collects the dynamic changes of air pressure and temperature inside the engine intake manifold, and accurately converts physical pressure and temperature signals into standard electrical signals for transmission to the engine ECU.
It provides core data support for the ECU to accurately calculate basic fuel injection quantity, match optimal ignition timing, optimize air‑fuel ratio control and adjust vehicle power performance. It is a key core component of the automotive engine electronic control system.
Integrating dual detection functions of temperature and pressure, the sensor features high measurement accuracy, high induction sensitivity, excellent operational stability, low static power consumption, strong anti‑interference capability and long‑term service reliability. It is perfectly compatible with power systems of passenger vehicles, commercial vehicles, construction machinery and other equipment.
Product Parameters
Operating Pressure: 10~400 kPa (customizable range available)
Measurement Accuracy: ±1.25% VCC (0℃~+100℃)
Full Temperature Range Error
- -40℃~0℃: ±2% VCC
- +100℃~+140℃: ±1.75% VCC
Operating Temperature: -40℃~+140℃
Storage Temperature: -40℃~+140℃
Maximum Overpressure Resistance: 800 kPa
Burst Pressure: 1200 kPa
Electrical Connector: TYC01-1718645-1 (customizable)
Ingress Protection: Compliant with GB4208-2008 standard, IP65 rated
Housing Material: PBT + 30% GF reinforced engineering plastic
Rated Supply Voltage: 5±0.25 VDC
Output Signal: 0.5~4.5 VDC (5V range adjustable on demand) / SENT protocol output
Low Clamp Level: 8% VCC (customizable)
High Clamp Level: 92% VCC (customizable)
Maximum Supply Current: 15 mA
Response Time: ＜10 ms
Overvoltage Protection: Long‑term tolerance to 16 VDC for 5 minutes
Short‑circuit Protection: Built‑in short‑circuit protection
EMC Electromagnetic Compatibility
- 150kHz ~ 2.5GHz: 50 V/m
- 80MHz ~ 3GHz: 100 V/m
ESD Electrostatic Protection: 15 KV
Core Product Features
- Integrated temperature & pressure design saves installation space and simplifies vehicle pipeline and wiring layout.
- Precise detection across full temperature range with controllable deviation under high and low temperature, adapting to complex driving conditions.
- Ultra‑fast signal response within 10 ms, feeding back intake status in real time and improving engine fuel economy.
- High‑strength glass fiber reinforced housing features high and low temperature resistance, aging resistance and vibration resistance for long service life.
- Built‑in multi‑protection against overvoltage, short circuit, high static electricity and strong electromagnetic interference to ensure driving safety.
- Optional signal output modes; connectors, pressure ranges and voltage parameters are fully customizable for multi‑model compatibility.
